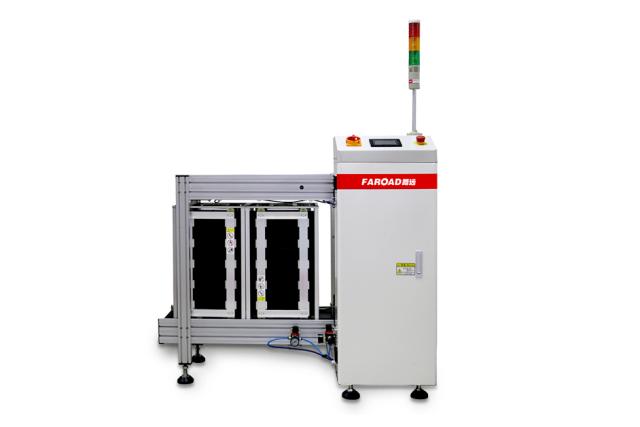

专用铝型材导轨及专用千鸟型塑胶链条
90W台产刹车马达驱动采用滚珠丝杆使Magazine步进升降
传输马达采用15W定速台产马达
气动夹件结构
三菱PLC可编程控制器控制
气动元件(推板气缸位置用丝杆调节)
操作控制面板为显控真彩触摸屏
Specialized aluminium guide rail and plastic roller chain
Taiwan-made 90w step motor driver adopts the ball screw to control the rise and down of magazines.
Taiwan-made constant speed conveyor motor with 15w.
Pneumatic clamping structure.
Mistubishi PLC programmable.
Pneumatic element(Pneumatic pusher position adjusted by the lead screw).
User-friendly “soft touch”LED membrane control panel.
参数规格Parameter specification
方向 |
右至左/左至右 |
升降平台节距选择 |
10,20,30,40 |
Magazine规格 |
L355*W320*565mm |
PCB最大规格 |
L330*W250 |
传输高度 |
H=920±30 |
满载储板数量 |
50PCS |
电源 |
220V 50HZ |
气源 |
0.4-0.6MPa |
外型尺寸 |
L1100*W780*H1200±30mm |
赠送 |
电控箱一套 |
Parameter specification
Transport Direction |
L→R/R→L |
Pitch Distance |
10,20,30,40 |
Magazine Size |
L355*W320*565mm |
Max PCB Size |
L330*W250 |
Transport Height |
H=920±30 |
Magazine Capacity |
50PCS |
Power |
220V 50HZ |
Air Source |
0.4-0.6MPa |
Machine Dimension |
L1100*W780*H1200±30mm |
Gift |
Electric control box/se |
